Introduction

When sourcing medium voltage switchgear, one question keeps coming up: SF6 circuit breaker or vacuum circuit breaker (VCB)? Both technologies interrupt fault current reliably, but they differ significantly in maintenance cost, environmental compliance, and long-term ownership experience. For panel integrators and distributors working across multiple markets, choosing the right technology directly affects delivery time and end-customer satisfaction.

1. Working Principle: Gas Insulation vs Vacuum Insulation

An SF6 circuit breaker uses sulfur hexafluoride gas as its insulating and arc-quenching medium. The gas has strong dielectric strength and allows a compact design, which made it the standard choice for high voltage grids for decades. However, SF6 is also a powerful greenhouse gas, with a global warming potential about 23,500 times that of CO2. Any leak affects both breaking performance and environmental compliance, and regulations such as the EU F-gas rules are pushing the industry to reduce SF6 use. Over the equipment's service life, SF6 breakers also need regular gas pressure and purity checks.

A vacuum circuit breaker uses high vacuum as the arc-quenching medium instead. When the contacts separate, the arc is extinguished quickly inside a sealed vacuum interrupter, without relying on any gas or liquid medium. Because the interrupter is fully sealed, VCBs need almost no maintenance after installation, and there is no gas leakage, recovery, or disposal to manage. This is the main reason vacuum circuit breakers have steadily replaced SF6 breakers across the 10kV–40.5kV medium voltage range.

2. Key Parameters Compared

Looking at the key parameters, the practical differences between the two technologies for medium voltage projects come down to breaking life, maintenance, and size. A modern vacuum circuit breaker typically covers a rated current range from 630A to 4000A, with a short-circuit breaking capacity up to 63kA, a full-load breaking life of 30+ operations, and mechanical endurance beyond 10,000 operations. An SF6 breaker in comparable duty typically achieves around 20–30 full-load breaking operations and needs periodic gas top-up and testing. At 10kV–40.5kV, vacuum circuit breakers are generally smaller and lighter than equivalent SF6 breakers, making them easier to fit into compact ring main units and metal-clad switchgear.

3. Application Scenarios & Buying Advice

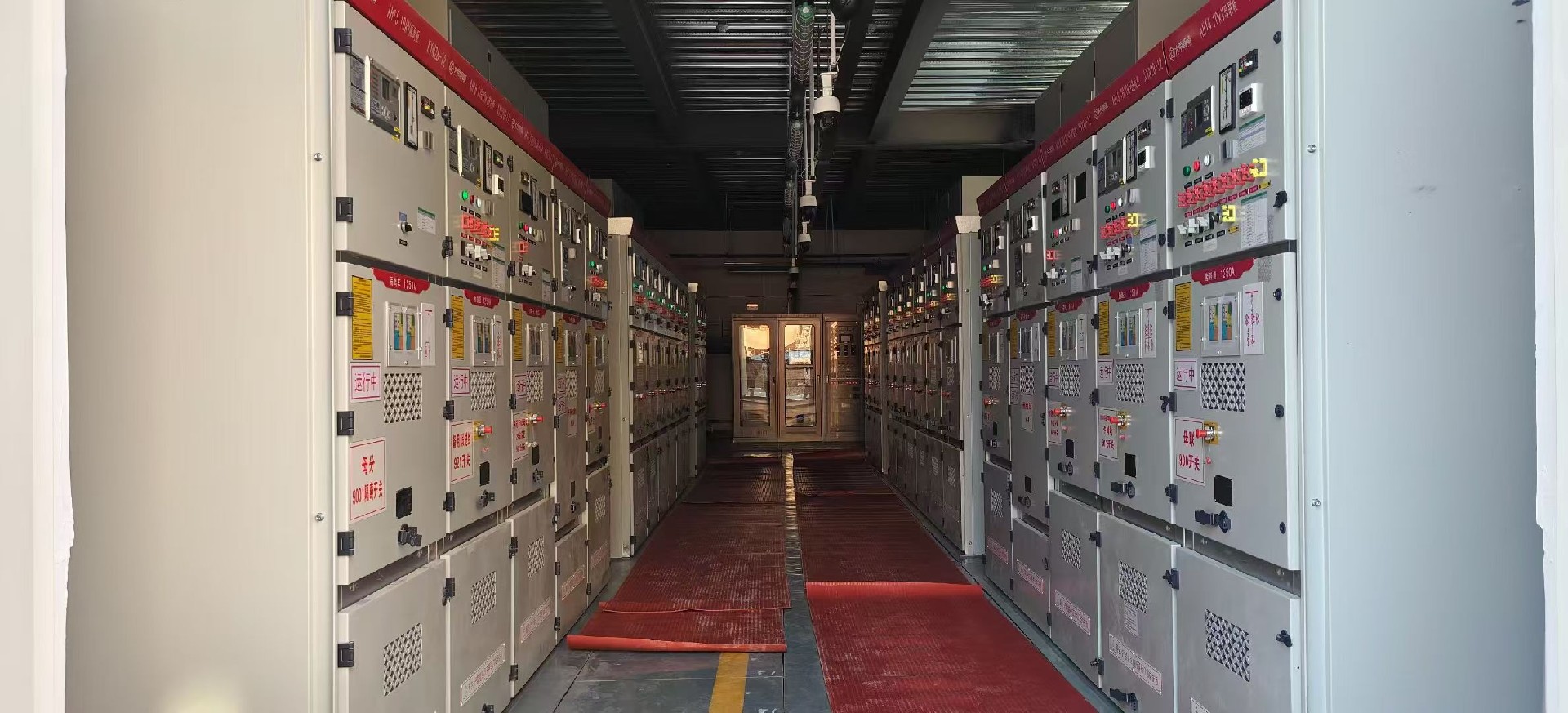

For panel integrators, a compact, maintenance-free VCB shortens assembly and commissioning time and helps meet end customers' growing environmental compliance requirements. For RMU manufacturers and electrical distributors, VCBs offer stable supply and broad spare-parts compatibility, making them the mainstream choice for 10kV–40.5kV MV projects today. SF6 still has an advantage in some compact high-voltage GIS applications, but in the MV range, tightening environmental regulation and higher maintenance cost are pushing more buyers toward vacuum solutions.

Liqiang's vacuum circuit breaker range covers 10kV–40.5kV, type-tested to IEC 62271-100 and CE certified, with qualified supplier status for State Grid and China Southern Power Grid. We provide panel integrators and RMU manufacturers with consistent technical parameters and stable delivery for medium voltage vacuum circuit breaker projects.

Conclusion & Call to Action

Whether you are specifying a new project or upgrading old SF6 equipment for environmental compliance, vacuum circuit breakers are now the mainstream technology choice for medium voltage switchgear. If you are evaluating VCB options or need a detailed parameter sheet,contact the Liqiang team for a quotation and type test report.
