Vacuum circuit breaker (VCB) is widely used because of its "maintenance-free" characteristic, but in actual operation, high-frequency operation and mechanical aging will still lead to various failures. When the equipment trips late at night, or the energy storage motor makes abnormal noise, field engineers need a set of "actual combat logic" that can quickly locate the problem.
On-site early warning: fault signals heard, seen and smelled
Before many serious accidents break out, they will send out early warning through small physical signals:
Abnormal sound: The "hissing" sound heard when the humidity is high is usually insulation creepage; The sharp sound of the energy storage motor indicates that the grease is dry or the carbon brush is worn out; There is a crisp "snap" sound when it is not operated, and it is necessary to be vigilant against partial discharge.
Odor and color: Burnt smell often comes from secondary circuit burnout. Check the main connection point, if the metal surface is blue or purple, it means that the resistance has seriously exceeded the standard.
Quick reference: common fault causes and countermeasures
malfunction phenomenon | Technical reasons | Actual Combat Countermeasures of Experts |
Energy storage motor "can't stop" | The travel switch is loose or the contact fails, resulting in the energy storage completion signal cannot be fed back, and the motor is idling | The position of the travel switch must be replaced if the contact is oxidized to prevent burning of the motor |
Mechanism energy storage completed but not closed | Closing coil burnt, secondary circuit broken, or cabinet door/grounding knife mechanical interlock not unlocked | Check the control loop voltage; Manually test whether the interlocking mechanism operates smoothly |
The opening and closing speed is significantly slower | Fatigue of opening spring or drying and caking of grease in internal operating mechanism, especially high incidence at low temperature | Thoroughly erase old grease and reapply special low temperature grease |
Abnormal loss of on/off signal | The auxiliary switch contacts are dusted or oxidized, causing the state feedback to be inconsistent with the actual position | Use precision electronic cleaner to clean auxiliary switch contacts and calibrate drive linkage |
Red or grey interrupter | The vacuum interrupter has a small amount of leakage, and the loss of vacuum leads to the air entering | Extremely dangerous! Immediate power failure to replace the arc extinguishing chamber |
Circuit resistance abnormal exceeding standard | Electrical wear of contacts due to insufficient contact pressure, loose connection points, or excessive bouncing during closing | Measure circuit resistance; Overtravel and stroke, fastening main circuit connection bolts |
General Preventive Maintenance: Three-Step Practical Method
For cabinets from different manufacturers, the following three operations are generally applicable:
Deep clean (prevent flashover)
With or without a dehumidifier, "insulation cleaning" is the number one priority. Use non-fibrous silk cloth with industrial alcohol to thoroughly clean the dust on the surface of insulators, insulation poles and arc-quenching chambers. In a lot of dust, this step can avoid 80% of flashover failures.
Lubrication system "broken off"
Don't apply new grease directly to old grease. Maintenance must first use cleaning agent to erase black, dry old grease, and then apply a thin layer of special low-temperature grease. Remember: the more oil, the better, too much is easy to absorb dust.
Key data "annual inspection"

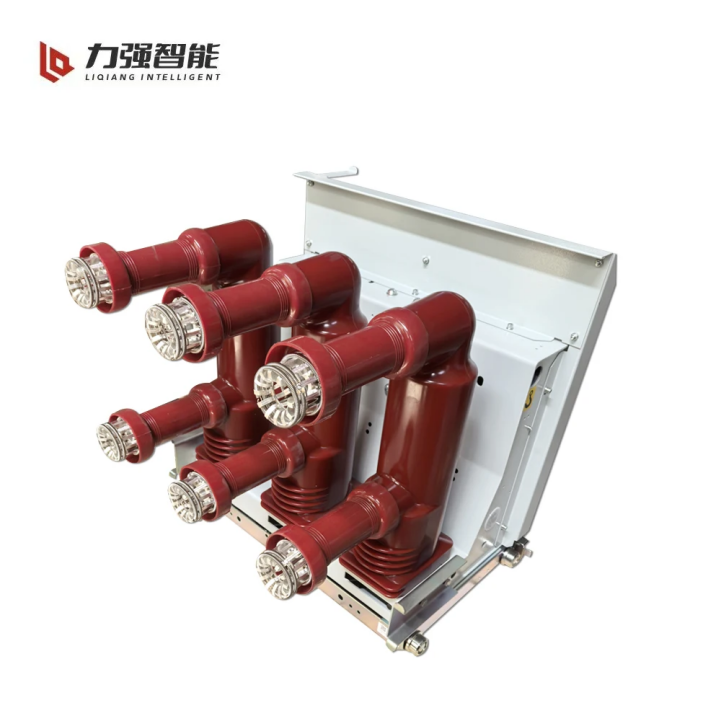

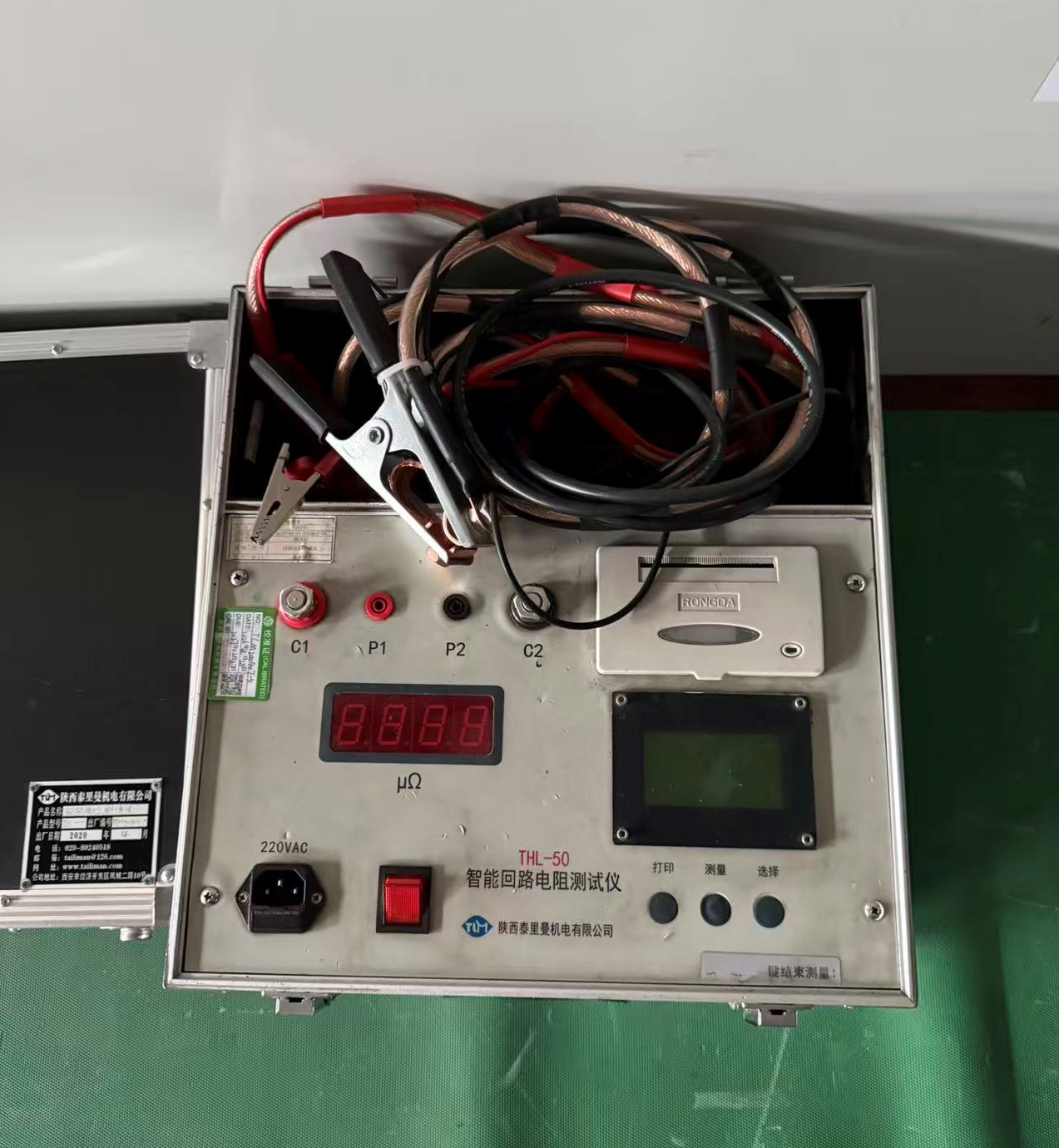

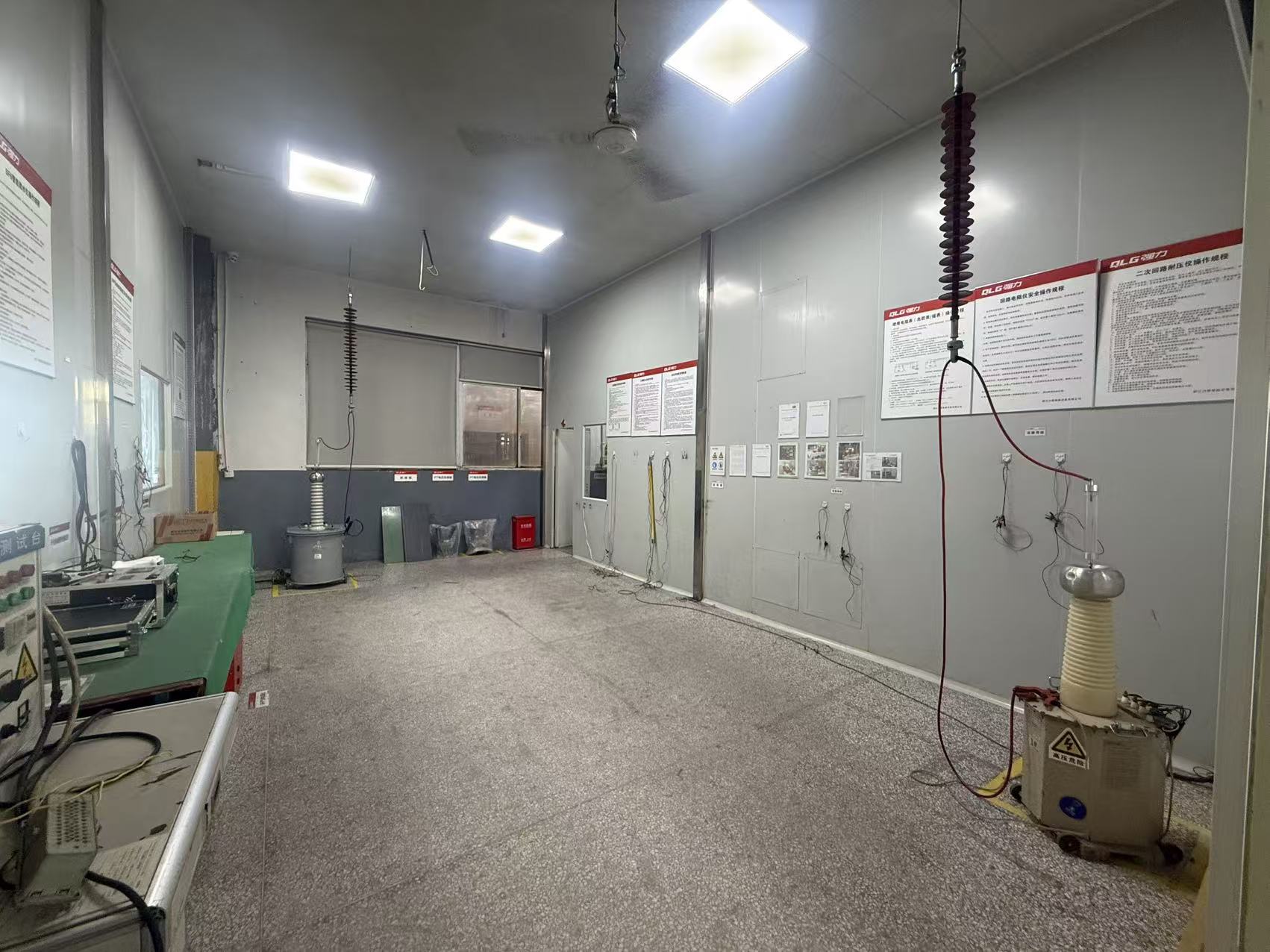

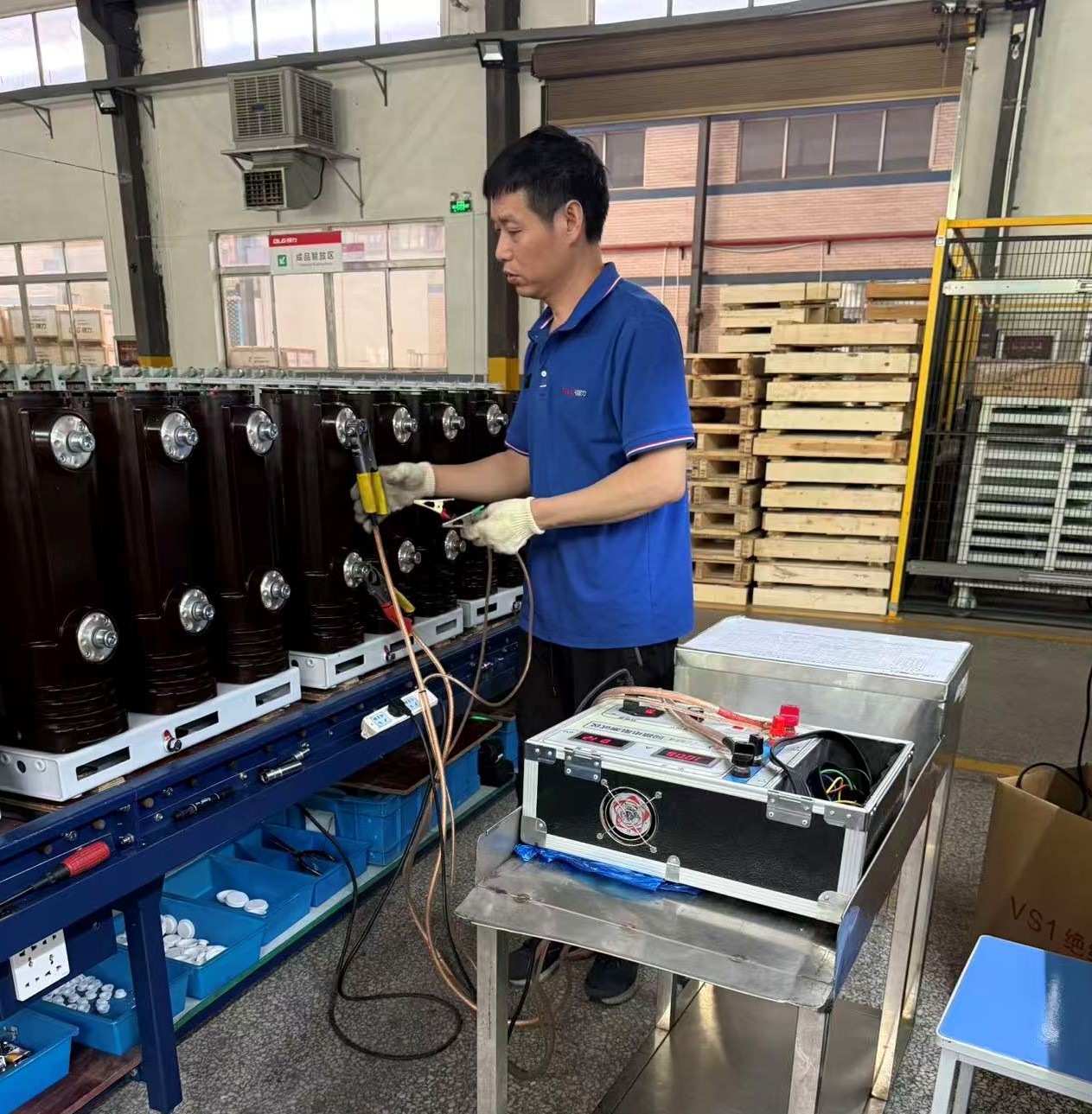

Circuit resistance test: Judging whether the contact is good or not through the resistance value. Withstand voltage test: Power frequency withstand voltage in the state of opening, which is the simplest and most widely used qualitative method for testing vacuum.
Conclusion
Correct maintenance is not only to prolong the life of equipment, but also to protect the safety of on-site personnel. Zhejiang Liqiang Intelligent Equipment not only provides high-performance vacuum circuit breakers, but also provides professional technical support and maintenance suggestions.
